DMX Transmitter/ Receiver

Overview

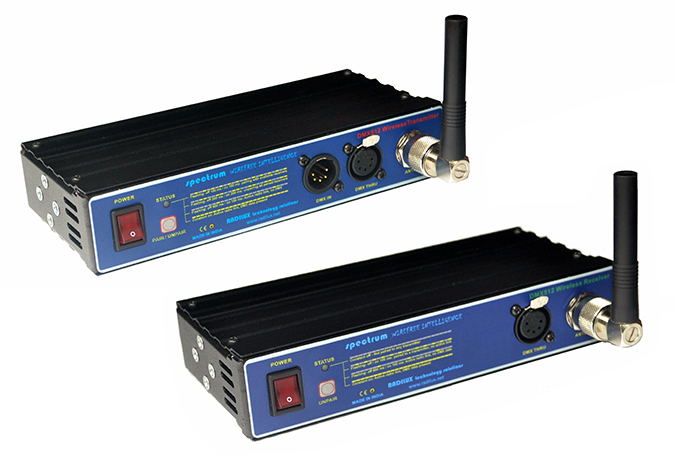

Spectrum SDTX1 and SDRX1 are compact and ultra light weight transmitter and receiver modules for wireless DMX data transmission and reception. The modules utilises the international licencefree ISM band 2.4GHz.with all the advanced features such as automated cognitive coexistence, DMX fidelity, low latency, strong encryption, etc., all packed together on one small module. These are very useful where usage of DMX cables are difficult or impossible. These transmitter and receivers works on advanced CRMX technology. CRMX is the first system to continuously scan the radio spectrum and adapt to the best frequency without interruption. This avoids both interference in the increasingly crowded license free radio sphere, as well as helping to maximize the performance of all the other radio systems sharing those frequencies. In short, it’s a smart radio that adapts. and compatible with W-DMX transmitters. Onemodules supports one full DMX universe of up to 512 channels at maximum refresh rate.

Features

• Ultra-Lightweight yet rugged construction.
• Highly flexible mounting options.
• Automated Cognitive Coexistence – CRMX
• Single button set up.
• On board status monitoring.
• Full DMX fidelity and frame integrity.
• DMX loop through for linking to other data streems.
• Industry standard 5-pin XLR sockets
• Fully compliant to DMX-512 (1990) DMX 512-A specifications.
• Universal power supply.

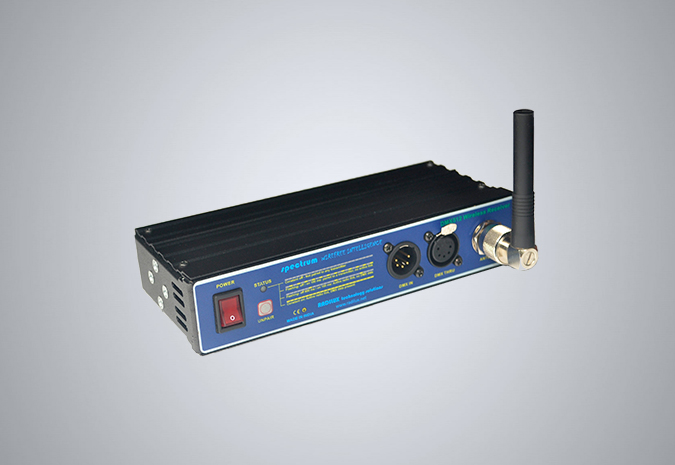

Default Mounting Positions

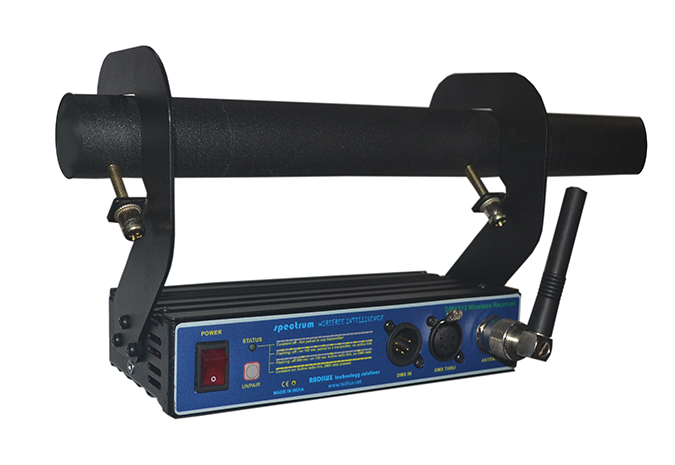

Optional Bar-mount Kit

Technical Data

• Power Input: 90V-265V AC 60/50Hz
• Input Type : Two pin power cord
• Power consumption: 6 Watts max
• Working Protocol: DMX512/1990& CRMX
• Control Input: 5 pin XLR/M (with loop out)
• Transmission power: 100mW (20dbm)
• Operating frequency: 2402-2480 MHz
• Antenna: 2 dbiN type 3”
• Dimension (mm) : 200(L) x 44(H) x 86(D)
• Weight: 240 gms
