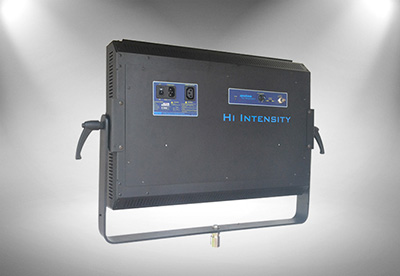

High Intensity SHI165A

Overview

The Spectrum cool fluorescent luminaire is most effective, versatile and meets exact need of a lighting director. The specially designed reflector do not require external intensifiers which occupies lot more space and result into reduction of overall dimension of luminaire. The new high intensity cool fluorescent luminaire is provided with accessorie holding slot which enable the use of different accessories like barndoor, control screen and gel frame. 300% more lumen per Watt than conventional tungsten lamps, less heat emission, less power consumption, greatly reduced energy cost and more comfort for the subject. Various dimming options - Local control, Analogue control and Digital DMX control(optional).

Features

Light weight rugged aluminium high quality construction with black matt powder coated finish.
Sleek design allows to use in narrow spaces and provides more space on lighting grid.
Computer aided parabolic reflector design gives high intensity and eliminates the necessity of using intensifiers for light boosting.

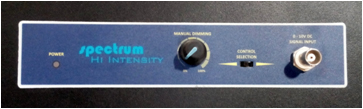

Dimming panels at back of the fixture allows to dim manually as well as through BNC analogue input.

Optional Pole operated yoke

Power loop through facility reduces the power outlet requirement and adds the possibility of using more lights.

Easy and quick luminaire maintenance by just removing luminaire back plate.

Set of narrow, medium and wide optional accessories to control the beam spread from flood to spot.

Technical Data

• Model Number : SHI 165A
• Electrical Input : 220 - 240V AC, 50/60 Hz
• Lamp Type : 55W SE PLL CFL 2 lamps connected to a single ballast.
• Lamp Base : 2G11 4 PIN
• Power Consumption : 175 Watts
• Dimming : Manual & BNC 0-10V DC, 100 to 5% and off below 5%
• Ingress Protection : IP20
• Protection Class : Class I (must be grounded)

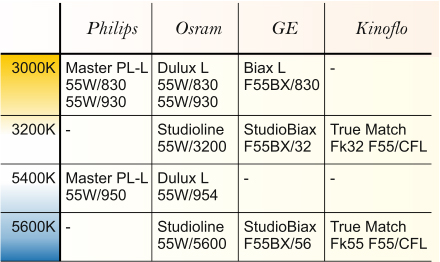

Compatible Lamps

Physical Data

• Weight 6.6 Kgs

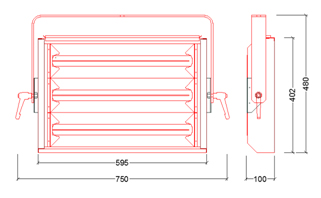

• Dimensions in mm
