Lighting Console

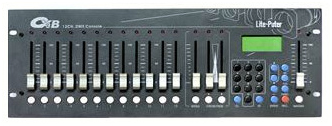

Basic DMX Lighting Console

Model:CX3B

The CX3B is a great console with unique features. 512 channels of lighting control can be achieved through 12 faders.Each fader allowsa scene to be programmed as submaster and recalled as per the event scene preference, making it great and ease of operation. 1000 numbers of scene memories can be stored and recalled using hot keys with a small LCD display provided on board. Simple built in chase sequence comes handy for chaser effect and can store up to 512 groups of chases with 256 steps each. The console operates on DMX512/1990 protocol and DMX out is available both in 3 pin and 5 pin XLR socket outlets. Well built CX3B is sturdy and compact in size makes it very portable and easily carryable for the events.

Features

  • Can control up to 512 channels.
  • 1000 scenes Memories.
  • 12 hot keys for scene recall.
  • Dedicated programming keys & display.
  • Save 512 groups of chasers, each chaser contains 256 steps.
  • 2 Cross-fade for scene change.
  • Audio control.
  • 12 Submaster memories.
  • Rugged yet light weight.
  • Rack mountable design.

Technical Details

  • Power Input: 230V-240V AC 50Hz (through external adapter DC 12V, 1A)
  • Power consumption: 10 Watts
  • Dimming Protocol :DMX512/1990
  • Control Outpot: through 3 pin & 5 pin XLR
  • Audio Input: Max 100mV
  • Installation: 19” rack, 4U
  • Weight: 4 Kg
  • Dimension: 482(W) mm x 64(H) mm x 175(D) mm
  • Marketed by: Radlux Technology Solutions
  • Model: CX3B
  • Make: LitePuter
  • Country of origin: Taiwan

96 channel DMX Lighting Console

Model:CX12II

The CX12 is a simple console with very good features, ideally suitable for a studio setup. 96 channels of lighting control can be achieved through 24faders with 4 pages.Each fader allowsa scene to be programmed as a submaster and recalled as per the event scene preference, making it great and ease of operation. 96 numbers of scene memories can be stored and recalled using either submasters or hot keys with a small LCD provided on board. Simple built in chase sequence comes handy for chaser effect and can store up to 24 sequences of 64steps each. The console operates on DMX512/1990 protocol and DMX out is available on 5 pin XLR socket outlet. Rugged, light weight and compact size of the console makes it very portable and easily carryable.

Features

  • Can control up to 96 channels.
  • 96 Programmable submasters.
  • 12 hot keys for scene recall.
  • LCD for easy menu navigation.
  • Master fader and blackout button.
  • Dedicated programming keys & display.
  • 24 chaser sequence in 64 steps.
  • 2 Cross-fade for scene change.
  • Audio control input.
  • Save scene to external memory card.
  • Rack mountable design.

Physical Details

Technical Details

  • Power Input : 90V-240V AC 43-63Hz
    • Power consumption : 15 Watts
  • Dimming Protocol : DMX512/1990
  • Control Outpot : 5 pin XLR
  • Audio Input : Max 100mV
  • Installation : 19” rack, 8U
  • Weight : 5 Kg
  • Dimension in mm: 482(W) x 126(H) x 356(D)
  • Marketed by: Radlux Technology Solutions
  • Model: CX12II
  • Make: LitePuter
  • Country of origin: Taiwan

Rear Panel
