Ultra High Intensity SFB165D

Overview

The FluoroBeam is a directional softlight giving almost parallel beam intensity, ideally suitable for High Definition and Standard Definition television and videography solutions with high quality, cool beam. With the introduction of HD broadcasts, it has become a necessity that the quality of light is more critical than ever. Using FluoroBeam, every textural details of a camera image can be captured with ease. The cool beam radiated by this luminaire makes the anchor/presenter feel comfortable throughout the video shoot. The light control required for a studio environment by the lighting designers can be achived from this DMX dimmable fixture. Intensity can be controlled from 100% to 5% and Off below 5% from a standard dmx lighting board. Get rid off the meshy dmx cable network with optional wireless dmx version compactible with WDMX and CRMX protocols. The luminaire comes with manual yoke as standard part and pole operated yoke and single rod flexi ball mount option are available on request. The fixture can be tilted and panned (as well as rotated in flexi ball mount option) to take full advantage of the light beam. Varying degrees of honey comb screens (wide, medium and narrow) reduce the need for barndoors and help create a soft edge.

Features

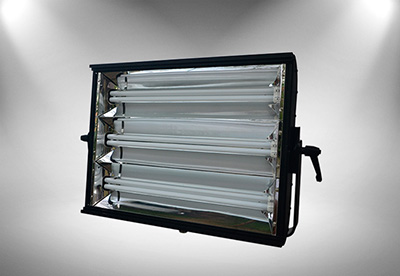

Rugged yet light weight state of the art design using aluminium extrusions with powder coated matt finish. Sleek design allows to use in narrow spaces and provides more space on lighting grid. Computer aided parabolic reflector design gives ultra high intensity and eliminates the necessity of using intensifiers for light boosting.

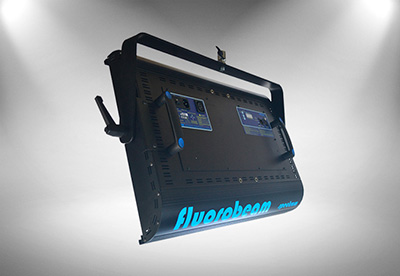

Handle grips at the back for easy handling and aiming.

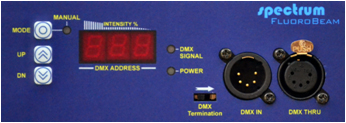

DMX dimming panel integrated with display and soft push keys for dmx addressing and manual dimming override.

Optional Pole operated yoke and Flexi ball mount

Power loop through facility reduces the power outlet requirement and adds the possibility of using more lights.

Wireless DMX version compatible with WDMX and CRMX protocols.

On-board DMX termination switch avoids the use of external dmx termination plug.

Dual accessory track to use filter frame with any other accessories at a time.

Easy and quick luminaire maintenance by just removing luminaire back plate.

Set of narrow, medium and wide optional accessories to control the beam spread from flood to spot.

Technical Data

• Model Number : SFB165D (DMX version) SFB165DW (Wireless DMX version)
• Electrical Input : 220 - 240V AC, 50/60 Hz
• Lamp Type : 55W SE PLL CFL 2 lamps connected to a single ballast.
• Lamp Base : 2G11 4 PIN
• Power Consumption : 175 Watts
• Dimming : DMX512/1990 & Manual, 100 to 5% and off below 5%
• Ingress Protection : IP20
• Protection Class : Class I (must be grounded)

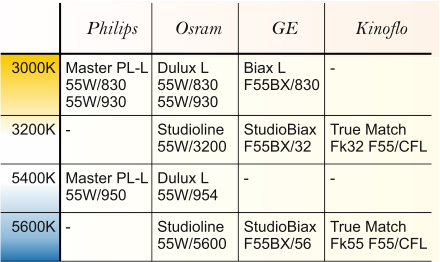

Compatible Lamps

Physical Data

• Length A 755 mm
• Height B 450 mm
• Height C 510 mm
• Height D 610 mm
• Deapth E 142 mm
• Weight 7.20 Kgs

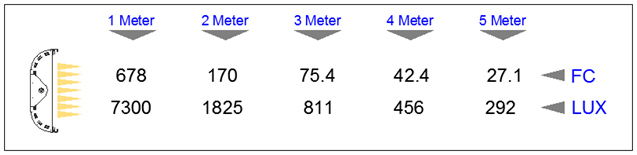

Photometrics

The above readings are using Philips Master PLl 55/830 lamps.
